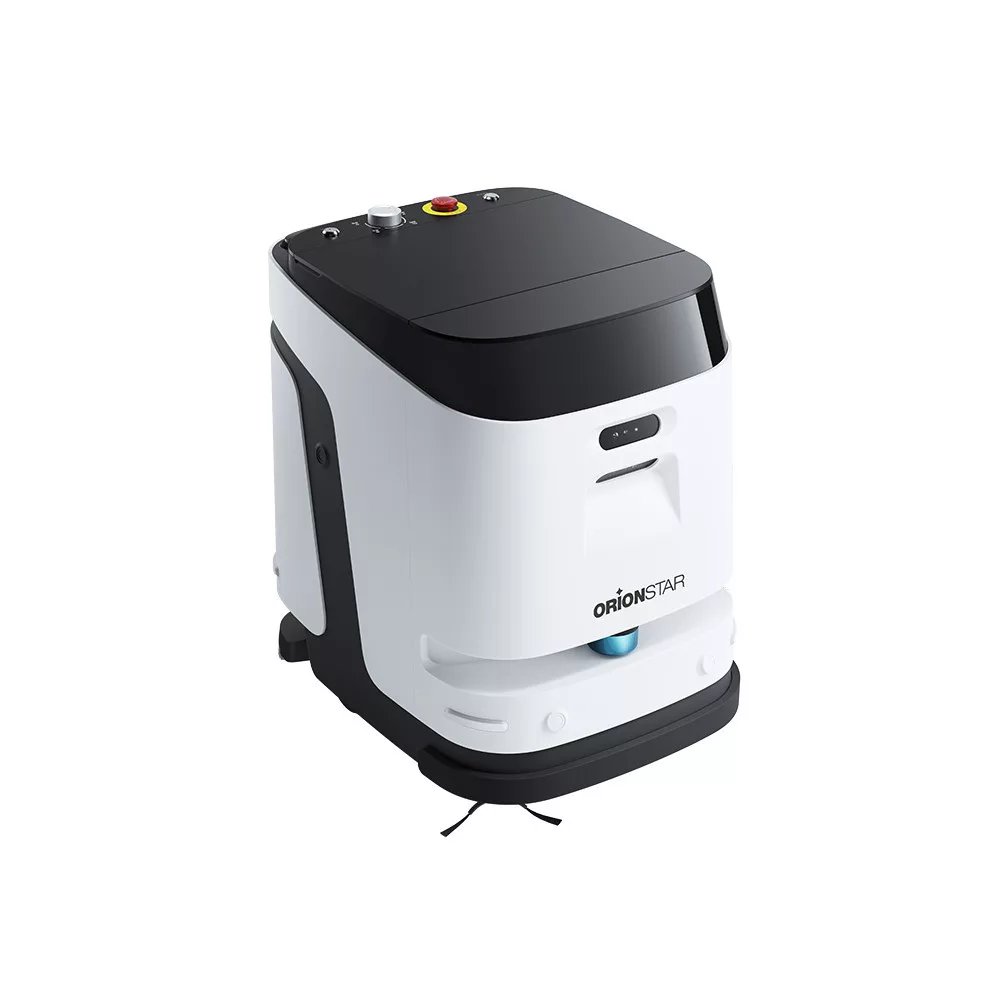

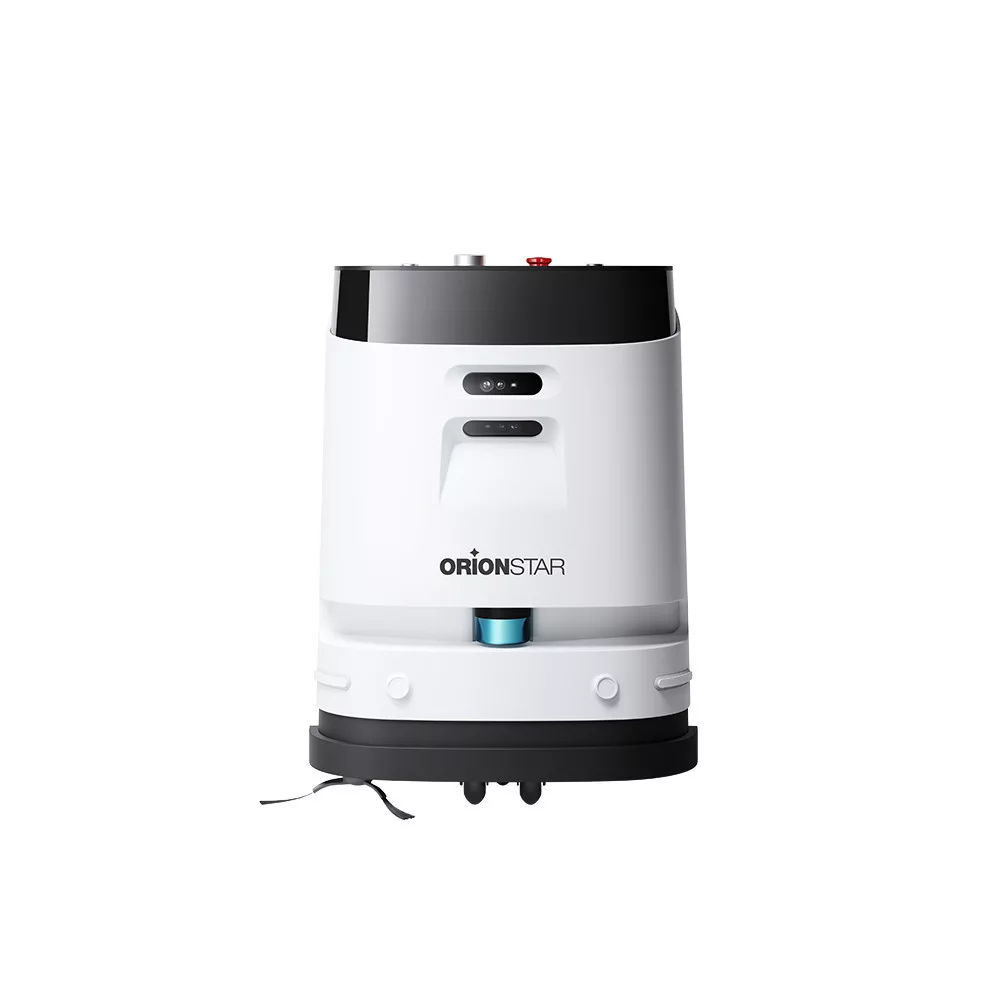

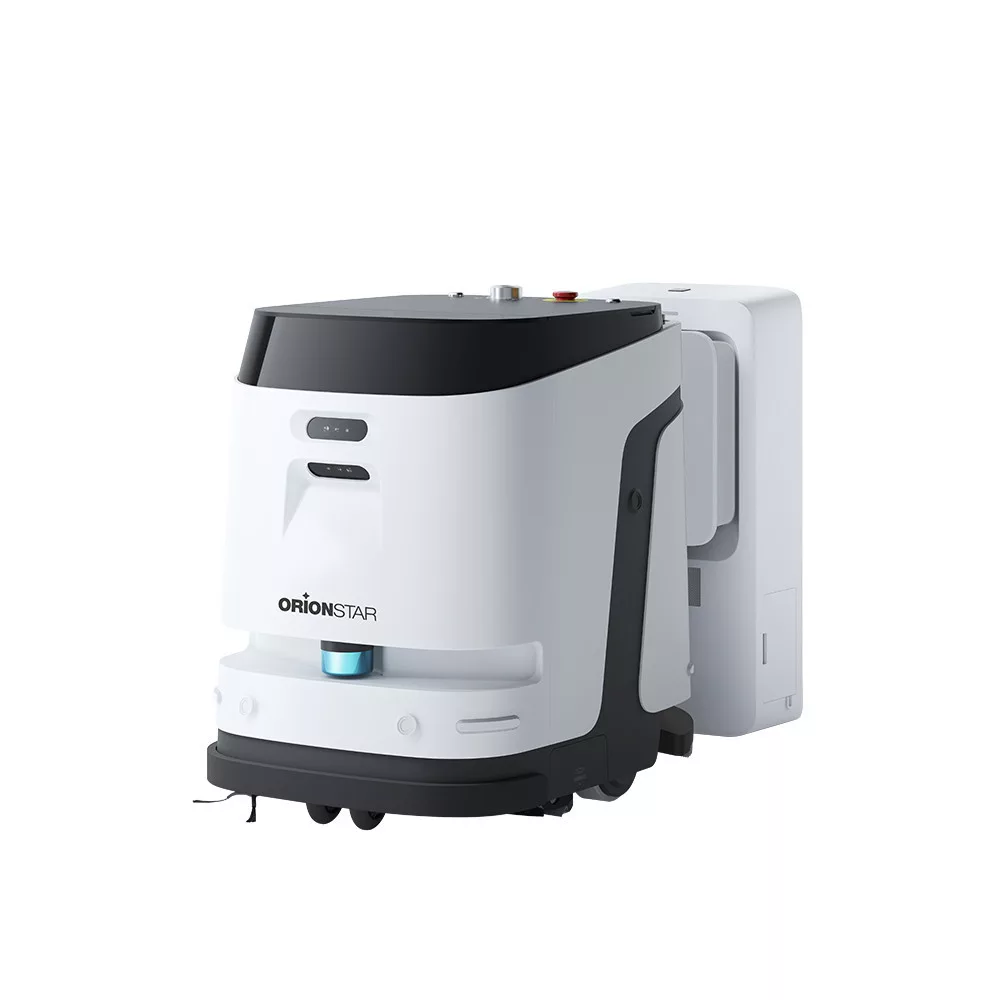

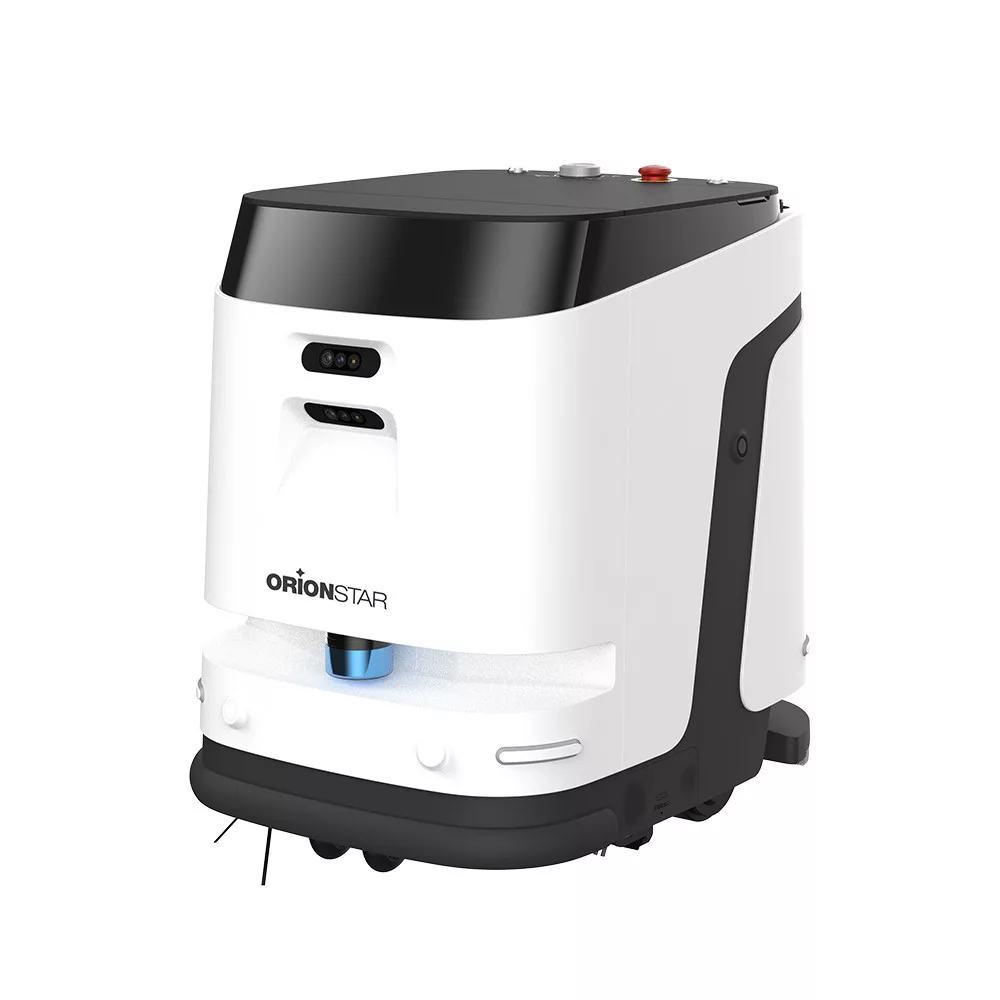

OrionStar CleaniBot K1 – Compact AI-Powered Autonomous Vacuum and Dust Mopping Robot
The OrionStar CleaniBot K1 is an advanced autonomous cleaning robot designed to deliver efficient vacuuming, sweeping, and dust mopping for commercial and public environments. Combining intelligent navigation, powerful suction, compact dimensions, and fully autonomous operation, the CleaniBot K1 helps facilities maintain consistently clean floors while significantly reducing labor requirements and operational costs.
Developed for office buildings, shopping centers, universities, hospitals, hotels, retail locations, factories, and transportation hubs, the CleaniBot K1 represents a new generation of smart cleaning solutions that integrate seamlessly into modern facility management workflows. The robot works independently, generates digital cleaning reports, and provides visualized cleaning data through cloud-based management platforms.
Vacuuming, Sweeping and Dust Mopping in One Robot
The CleaniBot K1 combines multiple cleaning functions in a single compact platform. Its powerful vacuuming system, sweeping brushes, and dust mopping capabilities allow the robot to effectively remove dust, paper scraps, cigarette butts, nutshells, toothpicks, and other common debris found in commercial environments.
- Vacuuming, sweeping and dust mopping in one machine
- 20 kPa powerful vacuum suction
- 10 L large-capacity dust bin
- 440 mm cleaning width
- Up to 700 m²/hour cleaning efficiency
- Automatic cleaning mode switching
- Effective edge cleaning with side brush technology
- Capable of cleaning right up to walls and corners
The robot's high-performance cleaning system ensures reliable daily maintenance cleaning while providing consistent and repeatable results.
Powerful Cleaning with Long Runtime
Designed for extended autonomous operation, the CleaniBot K1 delivers long working times to maximize productivity and minimize interruptions.
- Vacuuming runtime up to 8 hours
- Mopping runtime up to 4 hours
- Large 10-liter dust collection capacity
- Fast charging in approximately 1.5 hours
- Maximum walking speed of 1.2 m/s
Compact Design for Narrow Spaces
One of the key advantages of the CleaniBot K1 is its highly compact design. With a robot width of only 420 mm and a minimum passable width of 520 mm, it can easily operate in corridors, between furniture, and in other narrow areas where larger cleaning robots may struggle.
- Compact 420 mm body width
- Minimum passage width: 520 mm
- Dimensions: 660 × 525 × 718 mm
- Maximum obstacle crossing height: 2 cm
- Maximum climbing angle: 10°
Intelligent Autonomous Navigation
The CleaniBot K1 utilizes advanced AI-powered navigation technology to operate safely and efficiently in dynamic commercial environments.
- Smart route planning
- Automatic elevator integration
- Autonomous passage through access control gates
- Automatic return-to-charge function
- Autonomous mission execution
- Digital map management
Advanced Multi-Sensor Safety System
Safety and stability are achieved through an advanced sensor fusion architecture that enables accurate positioning and obstacle avoidance.
- High-precision long-range LiDAR
- Two Full HD RGBD depth cameras
- Area-array TOF sensor
- Three ultrasonic sensors
- Geomagnetic sensor
- Multi-sensor obstacle avoidance
- Real-time environmental perception
User-Friendly Operation
The CleaniBot K1 has been designed for straightforward deployment and daily operation.

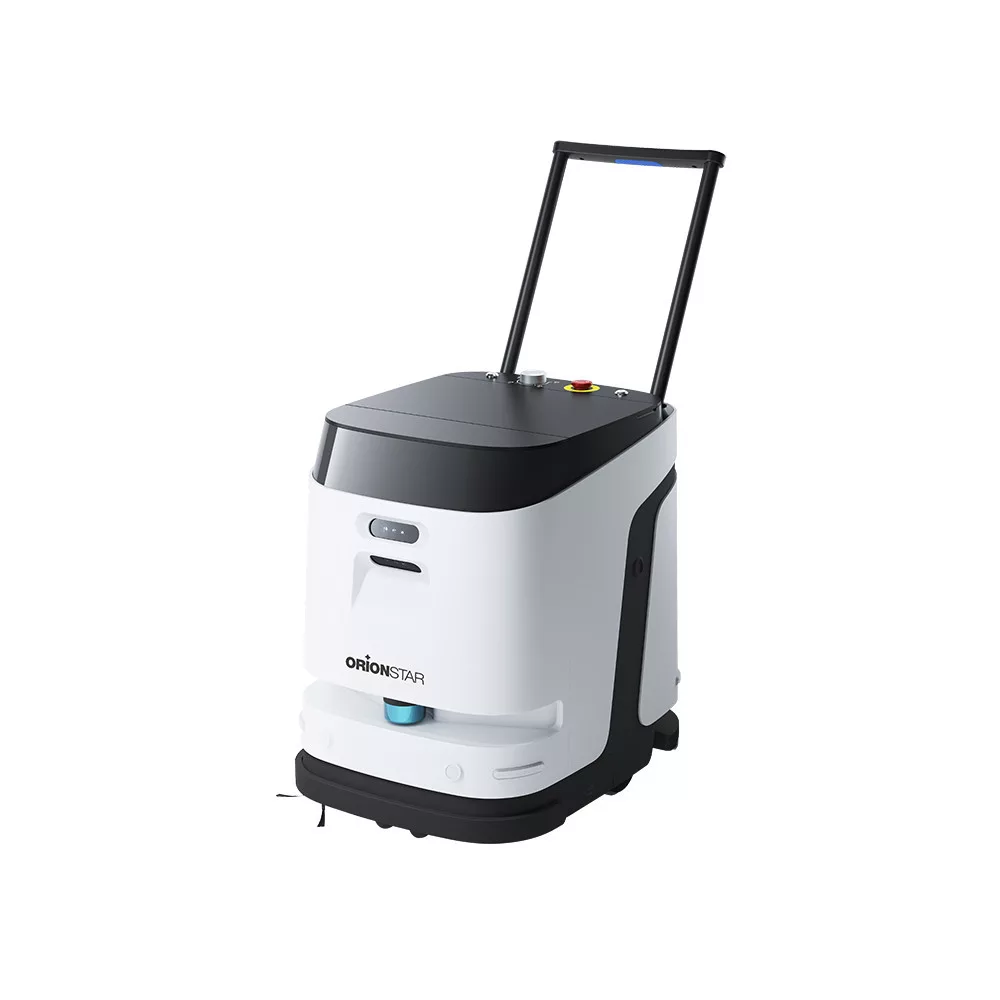

- Manual and autonomous modes in one unit
- Quick assembly and disassembly
- Simplified maintenance procedures
- Low-noise operation

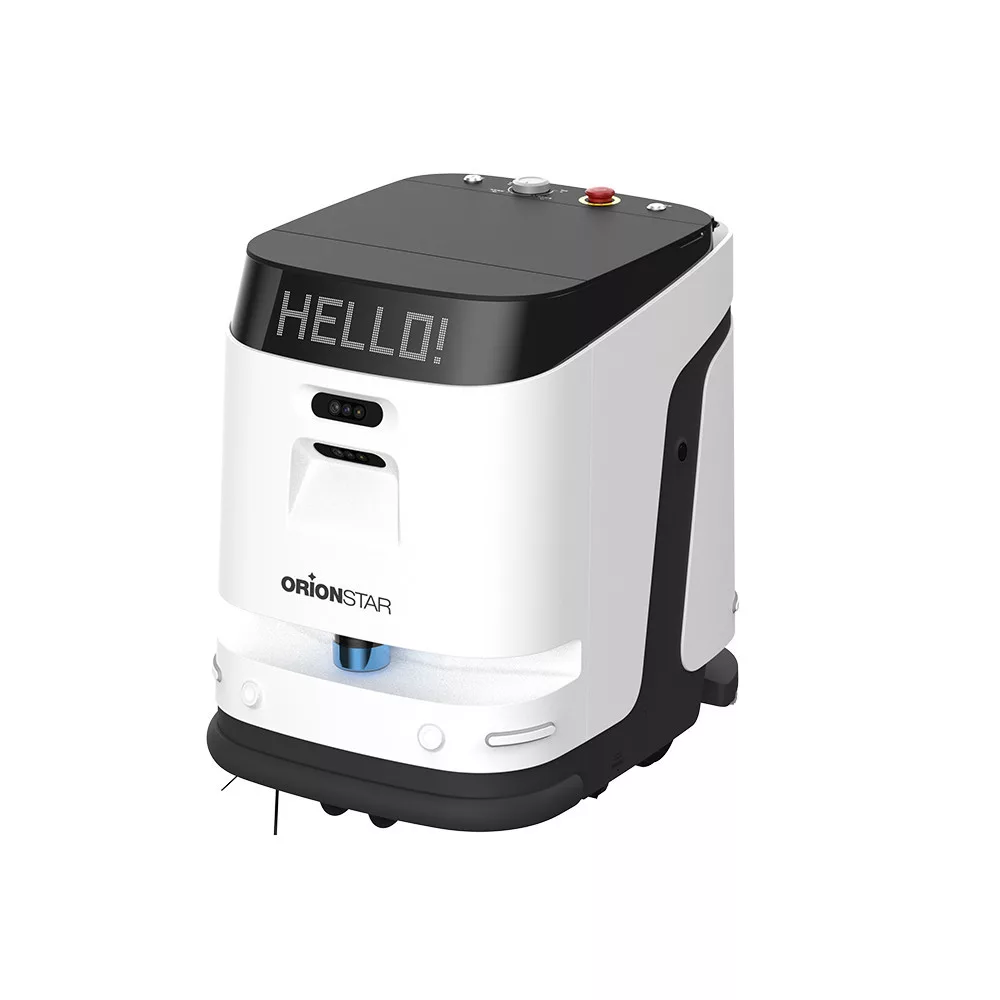

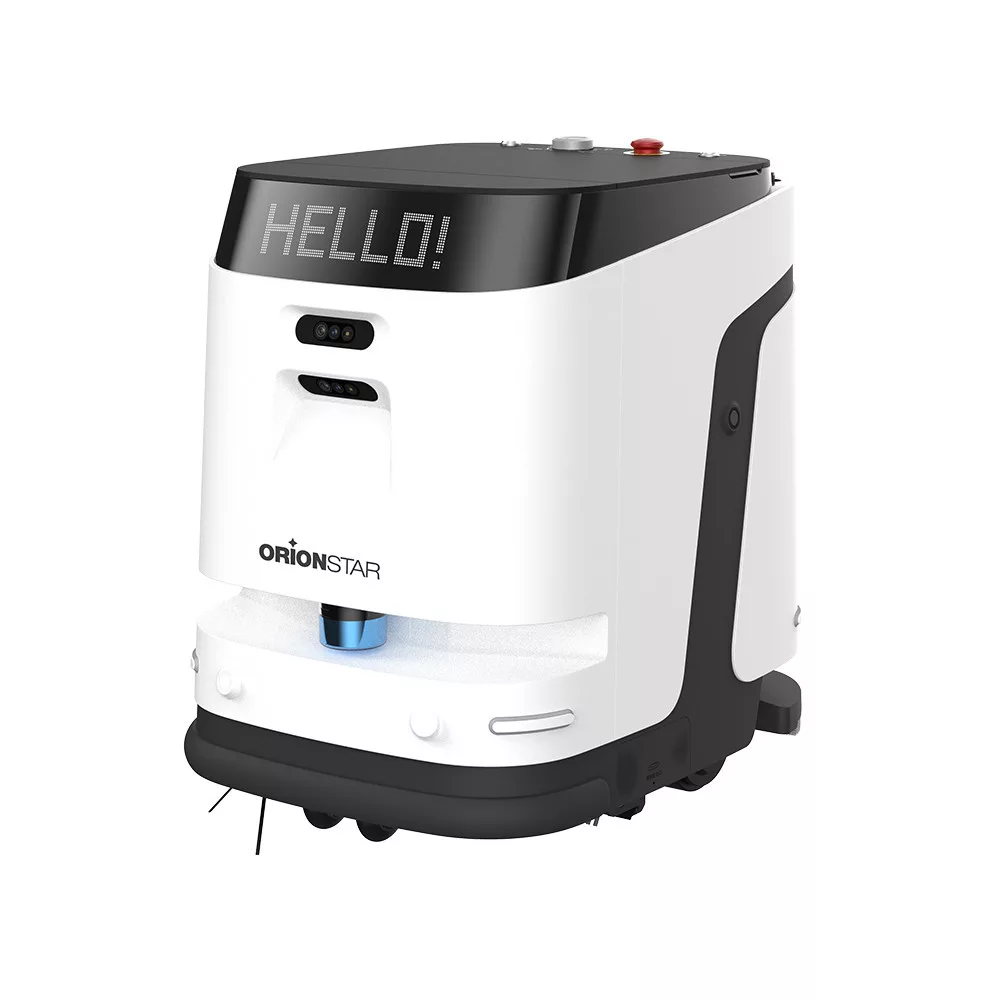

- Customizable appearance and display content
- Emergency stop and safety controls
Cloud-Based Remote Management
Through OrionStar's cloud platform and mobile application, operators can manage robots remotely and gain access to comprehensive operational data.
- Remote monitoring and control
- Map creation and editing
- Virtual walls and restricted areas
- Automatic task scheduling
- Real-time notifications
- Cleaning reports and analytics
- 24/7 remote maintenance support
- OTA software updates
- Multi-robot fleet management
Ideal Applications
- Office buildings
- Universities and educational facilities
- Hospitals and healthcare facilities
- Shopping malls
- Retail stores
- Hotels and hospitality venues
- Factories and industrial facilities
- Transportation hubs
- Public buildings
Technical Specifications
- Cleaning Functions: Vacuuming, Sweeping, Dust Mopping
- Cleaning Width: 440 mm
- Cleaning Efficiency: Up to 700 m²/h
- Suction Power: 20 kPa
- Dust Bin Capacity: 10 L
- Maximum Runtime: Up to 8 h (vacuuming)
- Mopping Runtime: Up to 4 h
- Charging Time: Approximately 1.5 h
- Maximum Speed: 1.2 m/s
- Maximum Obstacle Height: 2 cm
- Maximum Climbing Angle: 10°
- Minimum Passage Width: 520 mm
- Dimensions: 660 × 525 × 718 mm
- Weight: 46 kg
With its powerful 20 kPa suction system, compact design, intelligent navigation, autonomous operation, and cloud-connected management features, the OrionStar CleaniBot K1 delivers a highly efficient and cost-effective cleaning solution for commercial and institutional environments.
