DOBOT SMARTPENDANT TP10 - Wired programming console for DOBOT CRAS and CRA series industrial collaborative robots

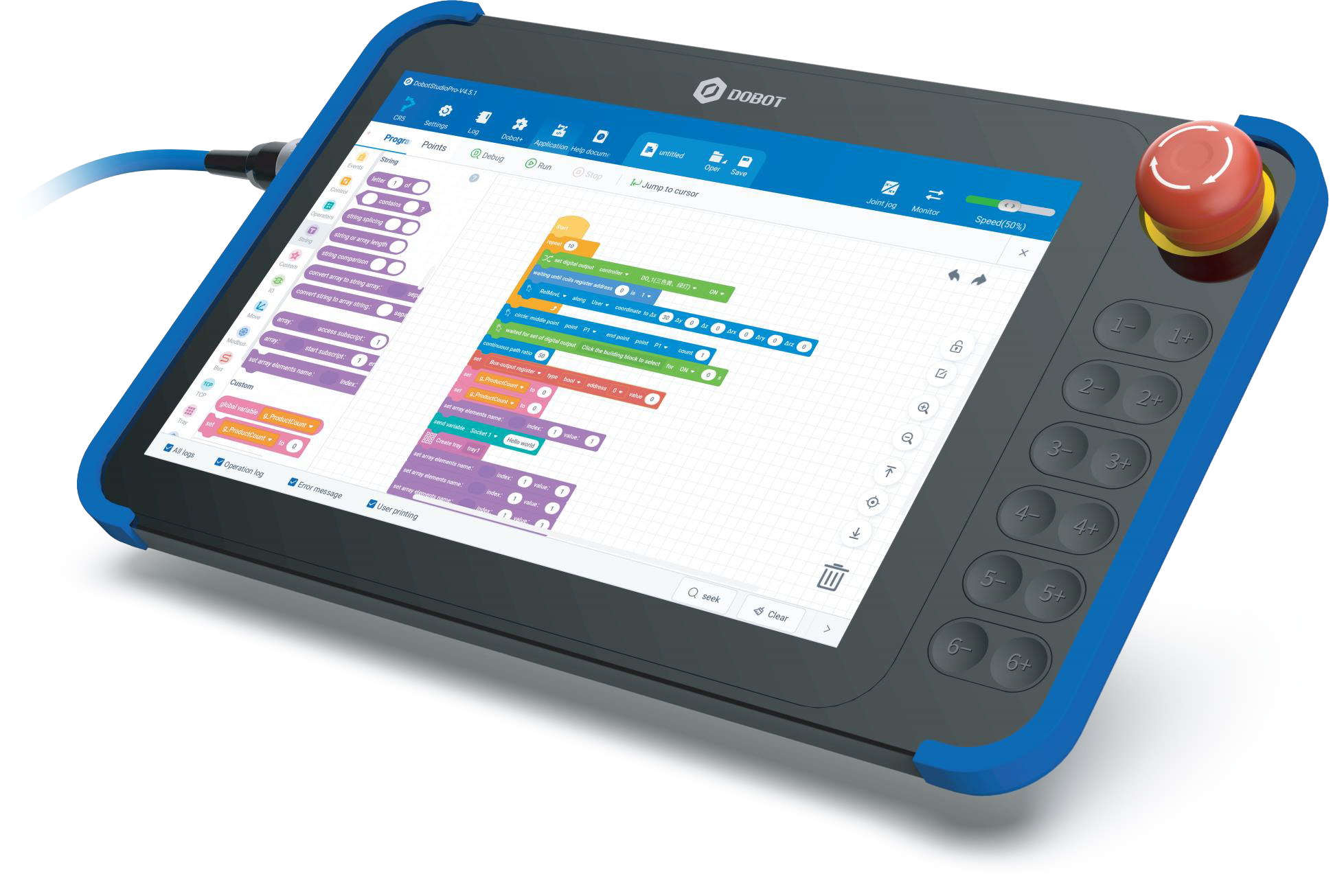

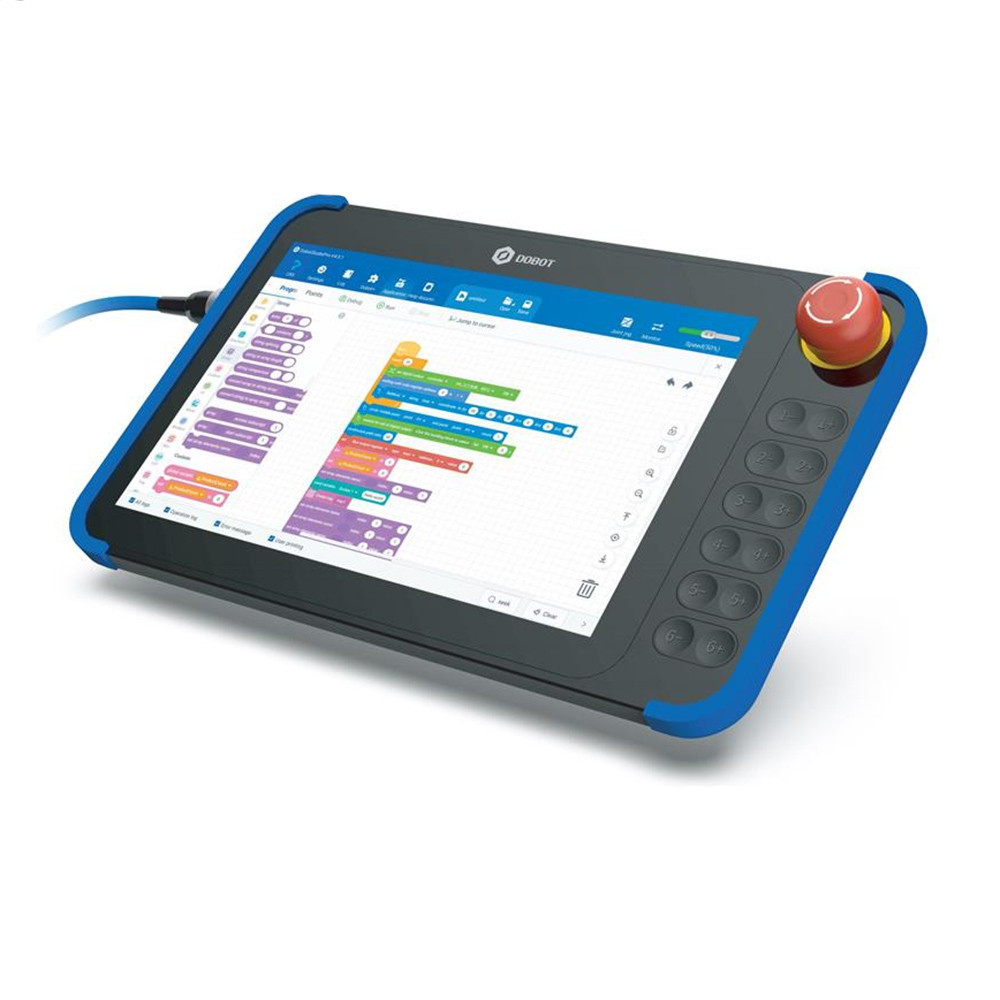

DOBOT SMARTPENDANT TP10
Wired programming console for DOBOT CRAS and CRA series industrial collaborative robots
The CRA series collaborative robots feature a lightweight design that seamlessly integrates aesthetics and ergonomics for a comfortable grip. Equipped with physical buttons and a large screen, they offer intuitive and effortless operation. With hot-swappable functionality, they combine safety and flexibility to deliver an exceptional user experience.
Enhanced Control and Flexibility
- Multiple Buttons for Effortless Operation
- 3-Position Switchgear: Configurable for 3-position enable or drag-and-drop mode, enhancing safety and control.
- 12 Physical Pushbuttons: Enables more flexible teaching operations, significantly improving debugging efficiency.
Superior Safety and Reliability
- High Protection Standards: Designed for maximum safety and reliability.
- ISO Standard Safety Certification: Ensures compliance with international safety standards.
Intuitive, High-Definition Display
- 10.1-Inch Ultra-HD Capacitive Screen:
- 1920 × 1280 Resolution for crystal-clear visuals.
- High-performance chip ensures smooth, lag-free operation.
- Multitouch support for a seamless user experience.
- Vibration & Buzzer Alerts:
- Provides tactile and audible feedback for easier recognition.
- Enhances usability with a rich, intuitive experience.
Parameters
Device Parameters | Product Model | Smartpendant TP10 |
L*W*H (excluding emergency stop) | 249*184*43mm | |
Weight | 1,09kg | |
IP rating | IP54 | |
Standard Cable lenght | 4,5m | |
Temperature of working environemnt | 0~50°C | |
Relative humidity of working environment | up to 90% (no condensation) | |
Material | PC + ABS | |
Screen | Size | 10:1 inch |
Resolution | 1920*1200@60Hz | |
Touch screen | Capacitive touch screen, multi-touch control | |
Operating system | Android 12 | |
Communication interface | 2 USB 2.0; 1 Type-C; 1 Ethernet interface | |
Buttons | 12 pushbuttons; 1 power button; 1 emergency stop switch; 1 3PS |
