DOBOT MAGICIAN LINEAR RAIL - Linear rail accessory for Dobot Magician robot arms
DOBOT MAGICIAN LINEAR RAIL - Linear rail accessory for Dobot Magician robot arms
Varenummer:
DBT-LIN-RAIL
1
2
DOBOT MAGICIAN LINEAR RAIL - Linear rail accessory for Dobot Magician robot arms
Varenummer:
DBT-LIN-RAIL

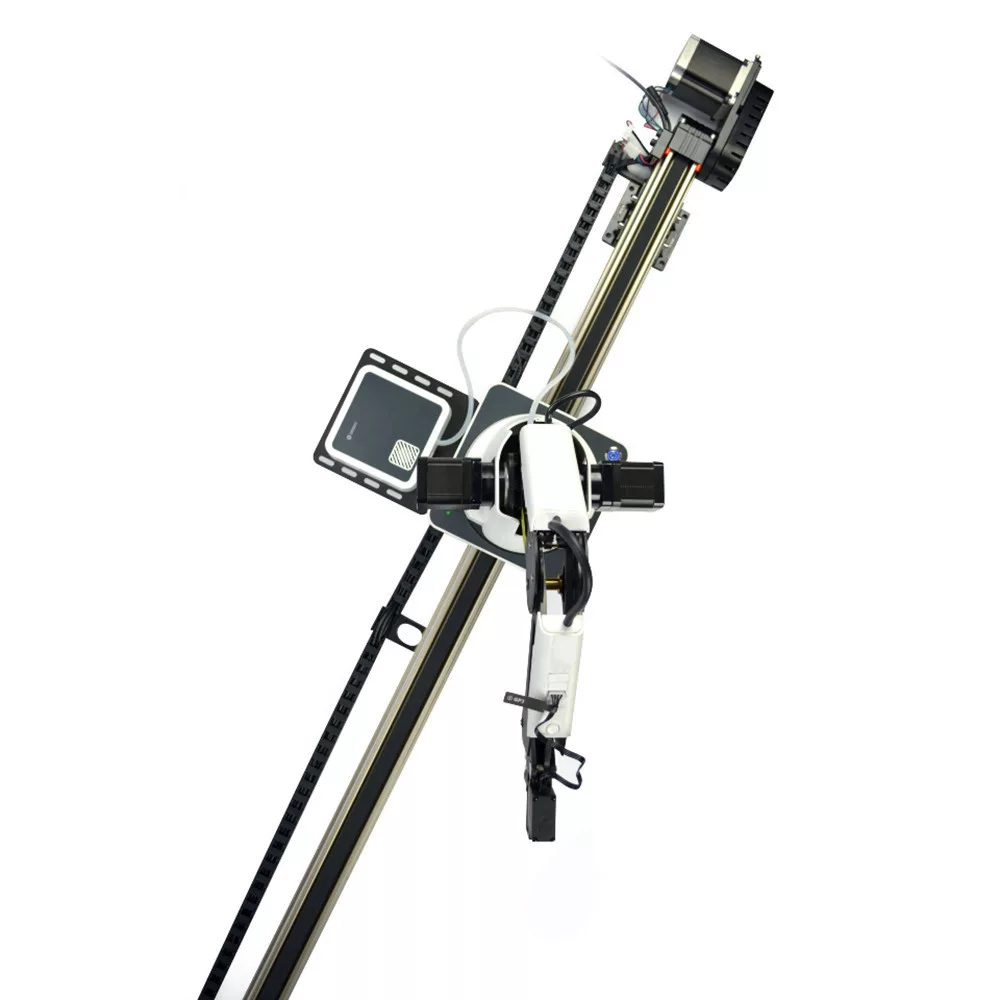

With a length of more than 1 metre and adjustable speed and positioning accuracy to tenths of a millimetre, the robotic arm can perform its logistical tasks or writing and drawing tasks over an even larger area. Thanks to its user-friendly design, it can be quickly connected to the robotic arm. For use exclusively with Dobot Magician Basic and EDU robotic arms.
På lager
gr: 1 092,41 € net: 917,99 €
Poeng opptjent etter kjøp:
76,47 €
DOBOT MAGICIAN LINEAR RAIL
Linear Rail for Dobot Magician BASIC, EDU and LITE robot arms
HAVE YOUR ROBOT ON TRACK!

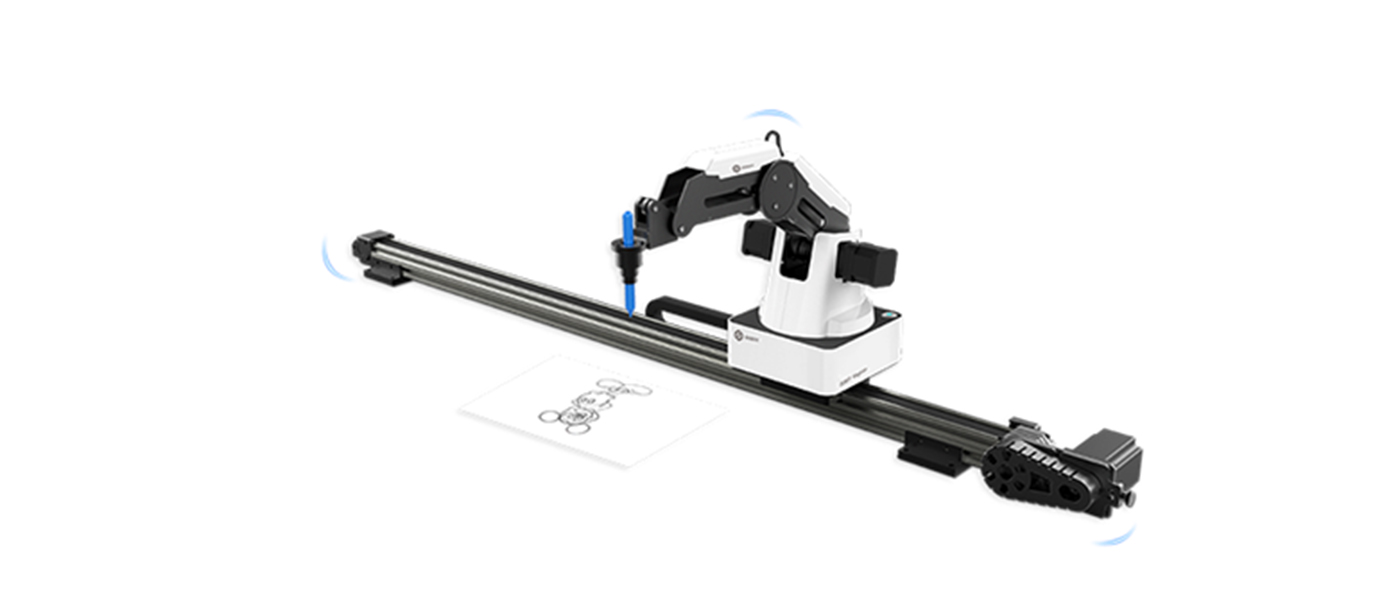

Extending the workspace by one metre opens up endless possibilities! With the rail set, the DOBOT Magician workspace is now suitable for larger volume tasks such as picking up and placing objects from a distance, writing, drawing or laser engraving on larger surfaces.
Parameters
| Payload | 5 kg |
| Effective length of movement | 1000 mm |
| Maximum Speed | 150 mm/s |
| Maximum Acceleration | 150 mm/s2 |
| Repeat positioning accuracy | 0.01mm |
| Abszolút pozícionálási pontosság | 0.25mm |
| Weight | 4.7 kg |
| Dimensions (L. x H. x W.) | 1320mm x 120mm x 55mm |

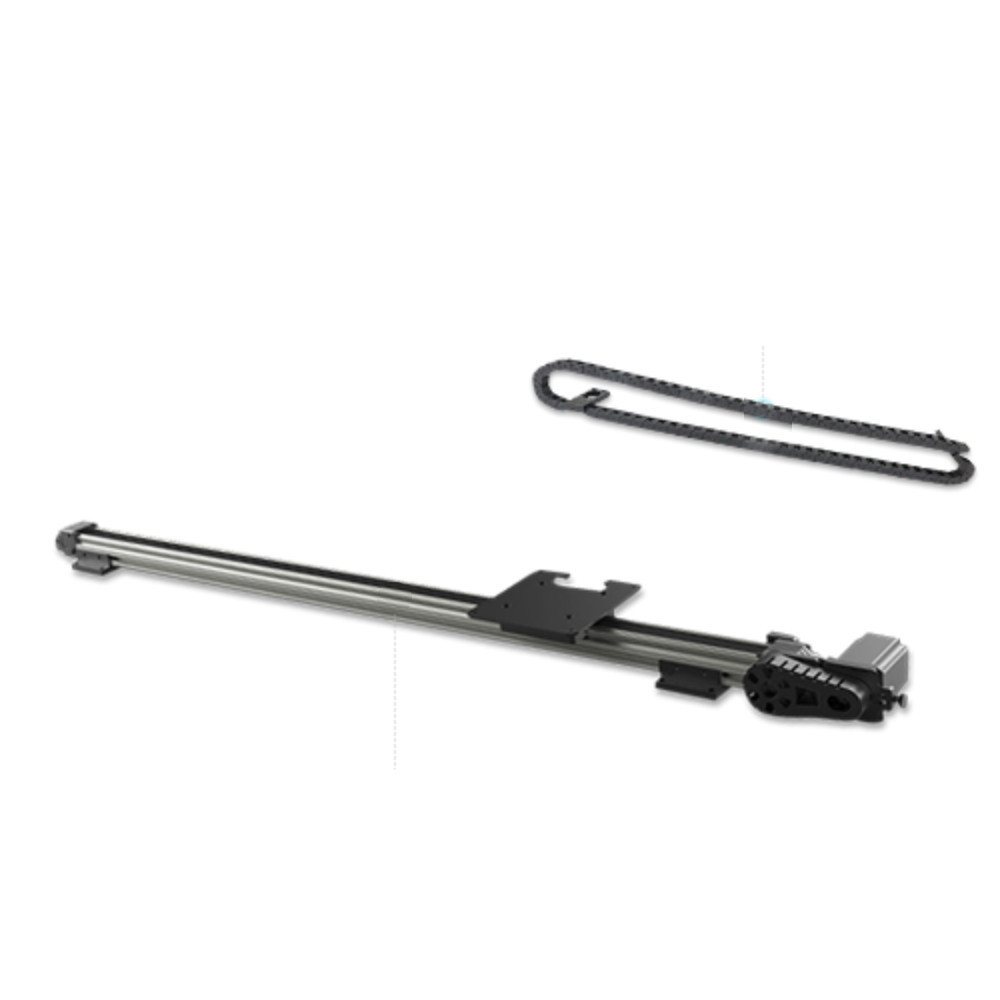

Rail:
The high-precision, industrial-grade linear rail ensures a smooth glide for the robot.
Tool kit:
The supplied multi-element tool kit makes rail installation easy.
Wire set:
The pull chain is protected from the work area so it can be used with the robot arms during production processes without any problems.
CONTENT OF PACKAGE
- 1 db Linear rail
- 1db Tool kit
- 1 db Cable set
- 1 db Connection module
- 1 db Assembly instructions
