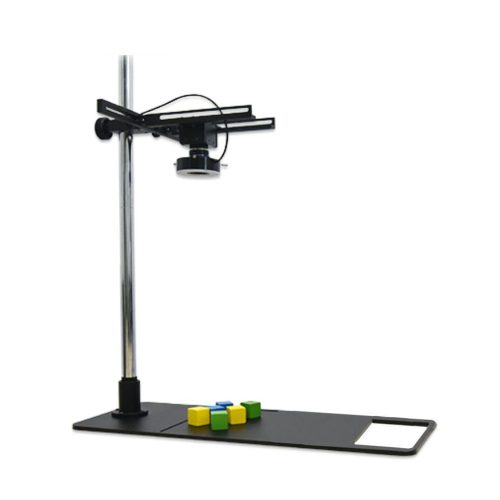

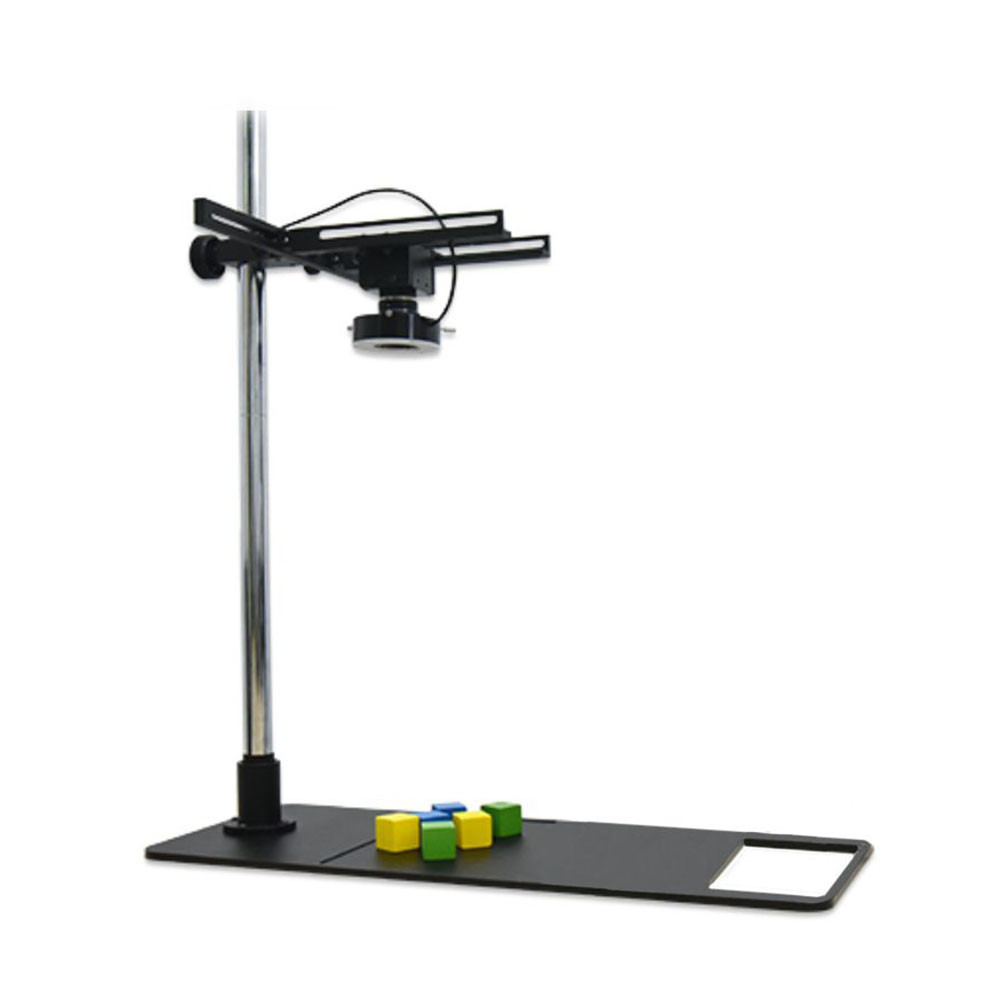

THROUGH THE EYES OF AI Industrial Camera accessory for Dobot Magician BASIC and EDU robot arms The DOBOT Vision Kit provides a basic software and hardware platform based on visual development. With the advantages of rich functionality, stable performance and convenient operation, it is perfectly suited for visual tasks including visual positioning, measurement, detection and recognition.
VIDEO
Third-party customization support, strong compatibility
Compatible with the DOBOT M1, the Vision Kit provides various SDK interfaces, building block-like programming and strong scalability. The Vision Kit supports GigEVision and USB3Vision protocol standards and can be interfaced with a wide range of camera brands.
Rich visual tools, powerful features
With more than a thousand image processing operations, powerful algorithms, and a rich visual analysis library, Vision Kit allows users to quickly create a programmed vision system that meets a variety of experimental application needs.
User Friendly and easy to use interface
Dobot Vision Studio supports graphical interactions, drag and drop operations and visual development. The configuration setup process is simple and flexible, while the Backstage and Output interfaces are easy to customise.
Intuitive and effective educational demos
To learn how to use the Vision Kit, a number of process demos are available on colour, barcode and character recognition, measurement, calibration, alignment, image processing, etc.
Product parameters of the colour HD industrial camera
Sensor size 1/2.5 "CMOS Shutter type Curtain exposure Sensor type Ar0521 Exposition time Bayer 16μs-1sec Other format 28μs-1sec Effective pixel 5 million Exposure control Automatic/Manual Hue Colour Colour Dimensions 29mm x 29mm x 30mm Pixel Size 2.2×2.2um Data interface USB3.0 Frame rate 31 Resolution 2592×1944 SNR >40dB Dynamic range >60dB Lens C-mount
Product parameters of the six megapixel 12mm fixed focus lens
Focus 12mm Flange back focus -0,38% Max image sizet 1/1,8 " (φ9mm) Latest shooting distance 17,526mm Aperture F2.8 - F16 Control aperture Manual filter with C-bayonetteC-mount bayonet Focus point Manual Dimensions M27×0,5 Angle of vision
D
41,2° H 1/1.8 34.4° V 23.4° Dimensions φ29×35,36mm Optical torsion -0,38%
CONTENT OF PACKAGE
1 pcs industrial grade camera
1 pcs USB cable
1 pcs dongle
1 pcs camera mounting kit
1 pcs demo accessory kit
1 pcs tool kit
